Technical Specifications
| model | Work pressure(MPa) | Design pressure(MPa) | Operating temperature(°C) | Design temperature(°C) | Water tank effective Volume (m³) | Safety valve settingPressure (MPa) | Operating mode | ||
| GCM-40 | 0.49 | 0.65 | 158 | 300 | 20 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-50 | 0.49 | 0.65 | 158 | 300 | 25 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-75 | 0.49 | 0.65 | 158 | 300 | 30/35 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-85 | 0.49 | 0.65 | 158 | 300 | 35/40 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-90 | 0.49 | 0.65 | 158 | 300 | 35/40 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-100 | 0.49 | 0.65 | 158 | 300 | 40 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-130 | 0.49 | 0.65 | 158 | 350 | 40/50 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-150 | 0.49 | 0.65 | 158 | 350 | 50/60 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-200 | 0.49 | 0.65 | 158 | 350 | 70 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-230 | 0.49 | 0.65 | 158 | 350 | 70 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-300 | 0.49 | 0.65 | 158 | 350 | 80/100 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-350 | 0.49 | 0.65 | 158 | 350 | 100 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-400 | 0.49 | 0.65 | 158 | 350 | 100 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-440 | 0.49 | 0.65 | 158 | 350 | 100 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-480 | 0.49 | 0.65 | 158 | 350 | 100 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-500 | 0.49 | 0.65 | 158 | 350 | 100/120 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-680 | 0.49 | 0.65 | 158 | 350 | 120 | 0.6 | Constant pressure/sliding pressure | ||
| GCM-710 | 0.7 | 0.9 | 170 | 350 | 120 | 0.8 | Constant pressure/sliding pressure | ||
| GCM-1050 | 0.79 | 1.03 | 175 | 350 | 150 | 0.9 | Constant pressure/sliding pressure | ||

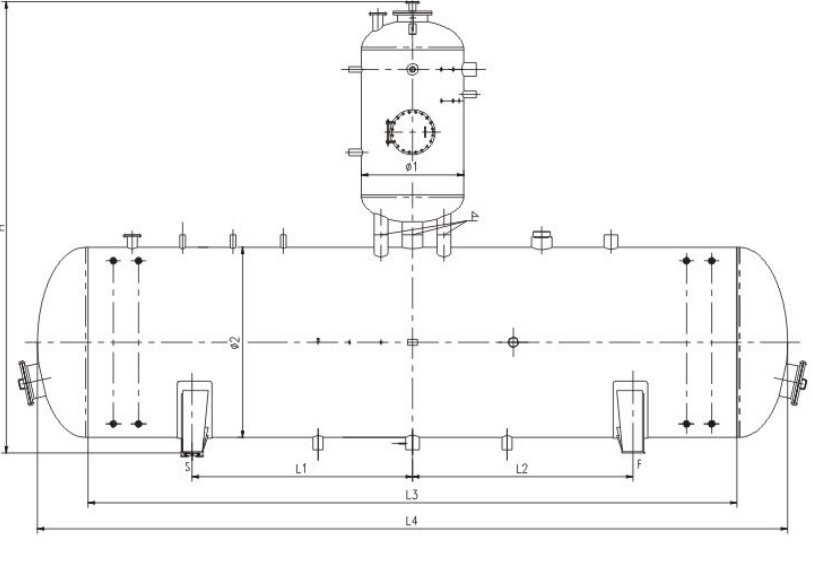

| model | L1 | L2 | L3 | L4 | φ1 | φ2 | H | |
| GCM-40 | 2000 | 2000 | 5700 | 6900 | 1000 | 2200 | 6050 | |
| GCM-50 | 2200 | 2200 | 6000 | 7300 | 1000 | 2400 | 6250 | |
| GCM-75 | 2500 | 2500 | 6100 | 7500/7600 | 1200 | 2600/2800 | 6540/6750 | |
| GCM-85 | 2500/2750 | 2500/2750 | 6100/7100 | 7600/8600 | 1400 | 2800 | 6750 | |
| GCM-90 | 2500/2750 | 2500/2750 | 6100/7100 | 7600/8600 | 1400 | 2800 | 6750 | |
| GCM-100 | 2750 | 2750 | 7100 | 8600 | 1400 | 2800 | 6750 | |
| GCM-130 | 2750 | 2750 | 7100 | 8600 | 1500 | 2800 | 6800 | |
| GCM-150 | 3000 | 3000 | 7800/8100 | 9800 | 1600 | 3000/3200 | 7240/7440 | |
| GCM-200 | 4000 | 4000 | 9700 | 11400 | 1800 | 3200 | 6810 | |
| GCM-230 | 4000 | 4000 | 9700 | 11400 | 2000 | 3200 | 6860 | |
| GCM-300 | 4500/6000 | 4500/6000 | 11200/14200 | 12900/15900 | 2400 | 3200 | 6980 | |
| GCM-350 | 6000 | 6000 | 14200 | 15900 | 2400 | 3200 | 6980 | |
| GCM-400 | 6000 | 6000 | 14200 | 15900 | 2600 | 3200 | 7050 | |
| GCM-440 | 6000 | 6000 | 14200 | 15900 | 2600 | 3200 | 7050 | |
| GCM-480 | 6000 | 6000 | 14200 | 15900 | 2800 | 3200 | 7100 | |
| GCM-500 | 6000 | 6000 | 14200/14800 | 15900/16600 | 2800 | 3200/3400 | 7100/7300 | |
| GCM-680 | 6000 | 6000 | 14800 | 16600 | 3200 | 3400 | 7500 | |
| GCM-710 | 6000 | 6000 | 14800 | 16600 | 3200 | 3400 | 7500 | |
| GCM-1050 | 8000 | 8000 | 18800 | 20600 | 3400 | 3400 | 7600 | |
